Diverse Prototypical Ensembles Improve Robustness to Subpopulation Shift

Accepted at ICML 2025

Minh Nguyen Nhat To
University of British Columbia
Vector Institute
Paul F R Wilson
Queen's University
Vector Institute
Viet Nguyen
University of Toronto
Vector Institute
Mohamed Harmanani
Queen's University
Vector Institute
Michael Cooper
University of Toronto
Vector Institute
Fahimeh Fooladgar
University of British Columbia
Purang Abolmaesumi
University of British Columbia
Parvin Mousavi
Queen’s University
Vector Institute
Rahul G. Krishnan
University of Toronto
Vector Institute

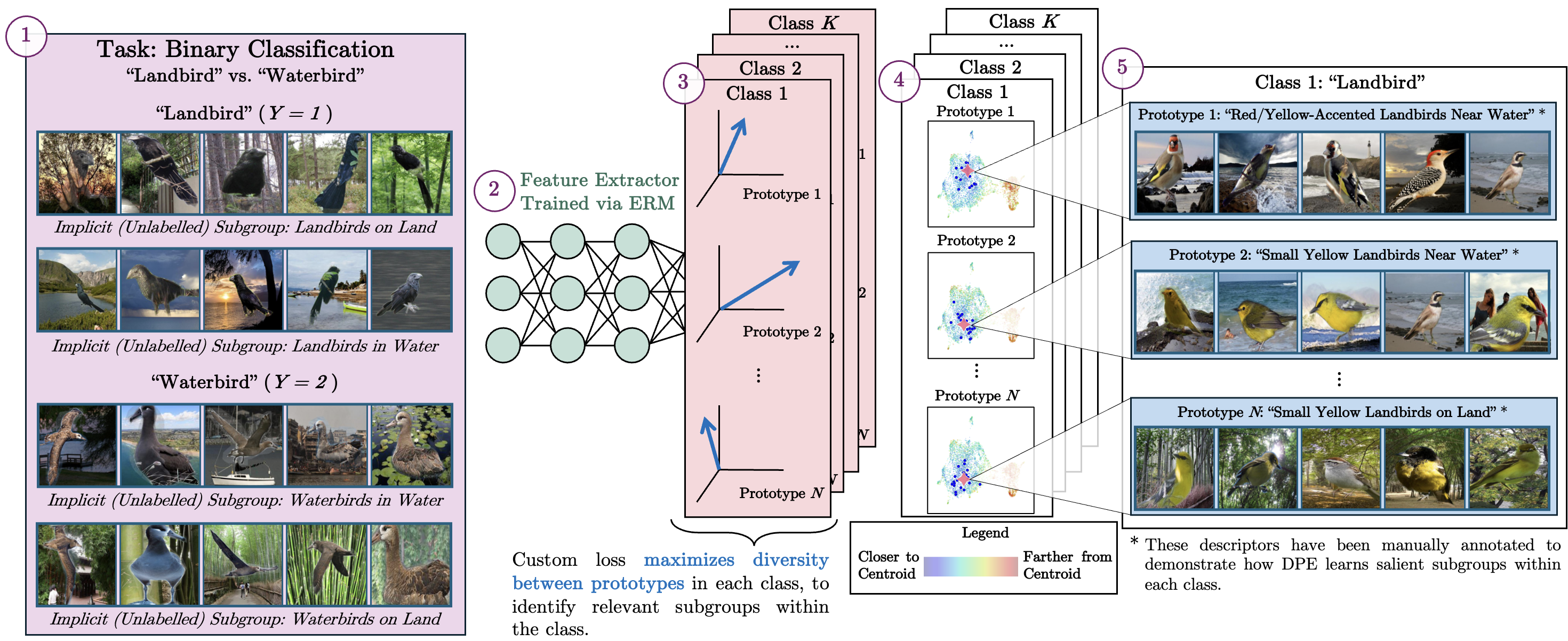

Diagram Overview of DPE

(1) Binary classification with implicit (unannotated) subgroups. The goal is to detect and correct for subpopulation shifts without prior group knowledge. (2) A frozen feature extractor, f(·), is used to extract features. (3) We train an ensemble of N prototype classifiers per class, using the IPS loss (Eq. 4) to encourage diversity and discover latent subpopulations. (4) A 2D projection shows centroids and sample proximity for the “Landbird” class in Waterbirds. Samples closest to each centroid are shown in blue, farther ones in red, and the closest few in dark blue. (5) Image patches nearest to each centroid confirm that learned prototypes align with meaningful subgroups (e.g., birds on land vs. in water).

Overview

Subpopulation shifts occur when the distribution of data subgroups differs between training and deployment environments. These shifts can significantly degrade the generalization performance of machine learning models, especially when subgroup annotations are unavailable. Existing solutions often rely on reweighting or subgroup-specific adjustments, which require prior knowledge or annotations that are difficult to obtain in real-world applications.

We introduce Diversified Prototypical Ensembles (DPE), a method that improves robustness by training a collection of prototype classifiers. Each classifier is designed to focus on different subsets of the data and different features. By encouraging diversity among ensemble members, DPE captures multiple decision boundaries, enabling better generalization across a wide range of subpopulations.

Key Contributions:

Motivation

In real-world datasets, classifiers often learn to rely on shortcuts or spurious features that correlate with the labels in the training distribution but fail to hold in deployment. These failures are especially severe when certain subgroups are underrepresented or shift at test time, making it difficult for the model to learn a single decision boundary that generalizes well.

A natural solution is to move beyond a single global decision rule. When a model is encouraged to consider multiple distinct ways to separate the data, it becomes more likely that at least one decision rule will align with the correct semantics across diverse subpopulations. This forms the key insight behind our approach.

Rather than relying on prior knowledge of subgroup structure, we explore the feature space. By training multiple classifiers that are explicitly encouraged to be different from one another, we can uncover a richer set of decision boundaries that are more robust to distribution shifts.

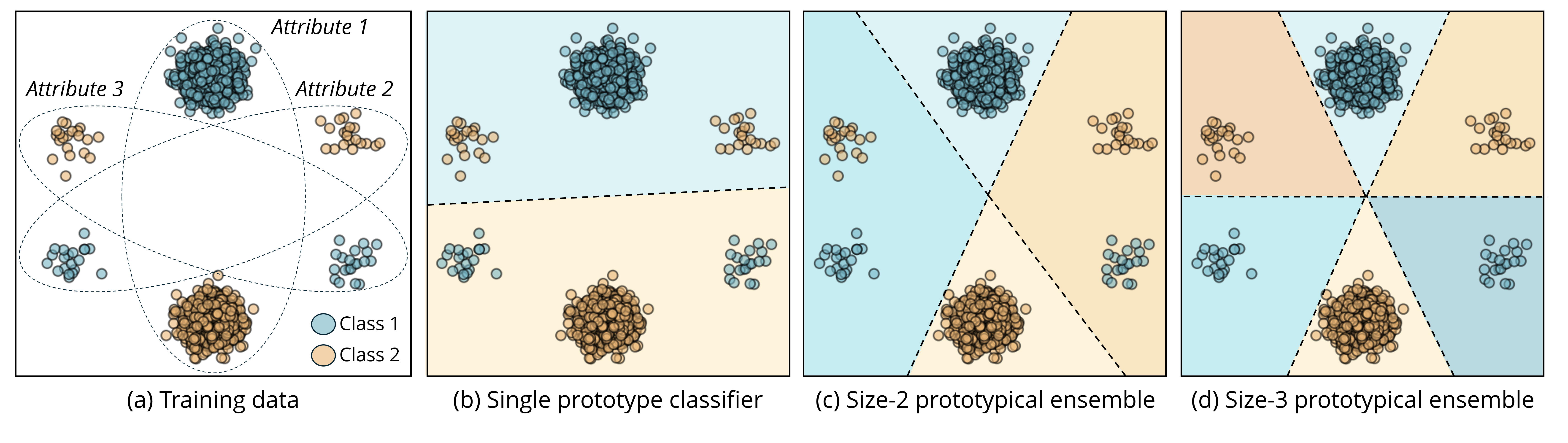

Diagram Overview of DPE
(a) A single model trained on mixed subgroups learns a biased decision boundary favoring the majority. (b–d) As ensemble size increases, each model captures different subgroup patterns, improving classification across subpopulations.

Diversified Prototypical Ensembles

DPE is a two-stage approach for improving robustness to subpopulation shifts by training an ensemble of diverse prototype classifiers. DPE first trains a feature extractor \( f: \mathbb{R}^n \to \mathbb{R}^d \) using standard empirical risk minimization (ERM) on the full training data. This backbone is frozen and then used to extract features for a small, class-balanced subset of the validation set. On top of these features, a diversified ensemble of prototype classifiers is trained. Notably, no subgroup annotations are required in this second stage, though they can improve balance via stratified sampling.

Prototypical Classifier

Each classifier contains a set of learnable prototypes \( \{p^{(i)}\}_{i=1}^K \), one per class. Given an input \( x \), its class probability is computed based on its proximity to each prototype in the latent space:

$$ P(y \mid x) = \frac{\exp\left(-D(f(x), p_y)\right)}{\sum_{i=1}^K \exp\left(-D(f(x), p_i)\right)} $$

The distance function \( D \) is scaled Euclidean distance between normalized feature vectors:

$$ D(x, y) = |d_s| \cdot \left\lVert \frac{x}{\|x\|} - \frac{y}{\|y\|} \right\rVert_2 $$

The classification loss for a data-label pair \( (x, y) \) is:

$$ \mathcal{L}(x, y) = -\log \left( \frac{\exp\left(-D(f(x), p_y)/\tau\right)}{\sum_{i=1}^K \exp\left(-D(f(x), p_i)/\tau\right)} \right) $$

Prototypical Ensemble

Instead of a single prototype per class, DPE maintains N prototypes per class, resulting in an ensemble:

$$ \left\{ p^{(k)}_j \mid k = 1, \dots, K;\ j = 1, \dots, N \right\} $$

The predicted class label is computed by averaging predictions across the ensemble.

$$ \hat{y} = \arg\max_{k \in \{1, \dots, K\}} \frac{1}{N} \sum_{j=1}^N P_j^{(k)}(y \mid x) $$

Ensemble Diversification

To prevent ensemble members from collapsing to similar decision boundaries, DPE uses two diversification strategies: an inter-prototype similarity loss and bootstrap aggregation across validation samples. The similarity loss penalizes correlated prototypes within the same class:

$$ \mathcal{L}_{\text{IPS}} = \sum_{k=1}^K \sum_{i=1}^{n} \sum_{j=1}^{n} \mathbb{1}_{\{i \ne j\}} \cdot \frac{\left| \langle p_i^{(k)}, p_j^{(k)} \rangle \right|}{n \cdot d} $$

Here, \( \langle \cdot, \cdot \rangle \) denotes the inner product, and \( d \) is the embedding dimension. Each prototype is also trained on a different class-balanced bootstrap sample, which encourages coverage of different feature subspaces. Together, these mechanisms ensure that the ensemble captures a wide variety of subgroup-relevant signals.

Evaluation Metrics

To assess robustness under subpopulation shift, we primarily use Worst-Group Accuracy (WGA), the standard evaluation metric in this field. WGA quantifies performance on the most challenging or underrepresented subgroup in the dataset, reflecting how well a model generalizes beyond dominant patterns. In addition to WGA, we report Balanced Accuracy (BA) and Standard Accuracy to provide a more complete picture of model performance across all classes.

Worst-Group Accuracy

Worst-group accuracy measures the performance of a model on the subgroup of data where it performs the worst. Formally, let \( \mathcal{G} \) denote the set of all groups, and let \( \mathcal{D}_g \) represent the subset of data belonging to group \( g \in \mathcal{G} \). Define the accuracy on group \( g \) as:

$$ \text{Acc}_g = \frac{1}{|\mathcal{D}_g|} \sum_{(x, y) \in \mathcal{D}_g} \mathbb{I}(f(x) = y) $$ $$ \text{WGA} = \min_{g \in \mathcal{G}} \text{Acc}_g $$

This metric evaluates the robustness of the model to underrepresented or challenging groups in the dataset.

Balanced Accuracy (BA)

Balanced accuracy is designed to mitigate the effects of class imbalance by averaging the accuracy across all classes. Let \( \mathcal{C} \) denote the set of all classes, and \( \mathcal{D}_c \) the subset of data belonging to class \( c \in \mathcal{C} \). The per-class accuracy is defined as:

$$ \text{Acc}_c = \frac{1}{|\mathcal{D}_c|} \sum_{(x, y) \in \mathcal{D}_c} \mathbb{I}(f(x) = y) $$ $$ \text{BA} = \frac{1}{|\mathcal{C}|} \sum_{c \in \mathcal{C}} \text{Acc}_c $$

Balanced accuracy ensures that each class contributes equally to the overall evaluation, regardless of its frequency in the dataset.

Standard Accuracy

For completeness, we also report standard (average) accuracy, computed over all examples regardless of group or class. While it provides a high-level view of model performance, it may mask disparities across subgroups or underrepresented classes.

Generalization Under Distribution Shifts

We evaluate the robustness of DPE against subpopulation shifts using nine real-world datasets across vision, language, and medical domains. These datasets are chosen to capture common challenges such as spurious correlations, attribute imbalance, class imbalance, and attribute generalization, all of which can degrade model performance under distribution shift. The evaluation includes Waterbirds, CelebA, MetaShift, ImageNetBG, NICO++, Living17, CheXpert, CivilComments, and MultiNLI, using the training, validation, and test splits provided by Yang et al. (2023). These datasets help assess model robustness when attribute or subgroup information is available or missing.

Across a wide range of subpopulation shift scenarios, DPE consistently achieves the highest worst-group accuracy, outperforming both classical and state-of-the-art methods. Its effectiveness holds under missing subgroup information, challenging shift types like attribute imbalance and generalization, and across different backbone strengths.

Robustness With and Without Subgroup Annotations

When attributes are unavailable during both training and validation, baseline methods degrade significantly. For example, ERM achieves 69.1% WGA on Waterbirds and 63.2% on CivilComments. Methods like CRT and ReWeightCRT also struggle in this setting.

In contrast, DPE performs consistently well across datasets without requiring subgroup annotations. It outperforms AFR (82.0%) and RWY (82.9%), and achieves 84.6% WGA on CelebA. On NICO++, DPE surpasses other methods by a large margin.

When subgroup annotations are available in the validation set, all methods show noticeable improvements in worst-group accuracy. Among them, DPE achieves the highest WGA on most datasets: Waterbirds, CelebA, MetaShift, and CheXpert. These results highlight DPE’s ability to leverage subgroup information effectively while maintaining strong generalization across diverse subpopulation shift scenarios.

In our experiments, ERM* refers to a stronger feature extractor trained with standard empirical risk minimization but using enhanced configurations such as longer training schedules, stronger data augmentations, potentially improving the quality of the extracted features.

Worst-Group Accuracy (Without Subgroup Annotations)

The top section presents SubpopBench-style baselines using an ERM backbone. The bottom section includes recent state-of-the-art methods and our method using a stronger ERM* backbone.

Algorithm Waterbirds CelebA CivilComments MultiNLI MetaShift CheXpert ImageNetBG NICO++ Living17
ERM 69.1 ±4.7 57.6 ±0.8 63.2 ±1.2 66.4 ±2.3 82.1 ±0.8 41.7 ±3.4 76.8 ±0.9 35.0 ±4.1 48.0 ±1.5
CRT 76.3 ±0.8 69.6 ±0.7 67.8 ±0.3 65.4 ±0.2 83.1 ±0.0 74.6 ±0.4 78.2 ±0.5 33.3 ±0.0
ReWeightCRT 76.3 ±0.2 70.7 ±0.6 64.7 ±0.2 65.2 ±0.2 85.1 ±0.4 75.1 ±0.2 77.5 ±0.7 33.3 ±0.0
DFR 89.0 ±0.2 73.7 ±0.8 64.4 ±0.1 63.8 ±0.0 81.4 ±0.1 75.8 ±0.3 74.4 ±1.8 38.0 ±3.8
ERM + DPE 91.0 ±0.5 81.9 ±0.2 69.9 ±0.9 69.3 ±0.8 84.1 ±1.5 87.9 ±0.6 50.0 ±0.0 54.0 ±4.0
ERM* 77.9 ±3.0 66.5 ±2.6 69.4 ±1.2 66.5 ±0.7 80.0 ±0.0 75.6 ±0.4 86.4 ±0.8 33.3 ±0.0 53.3 ±0.9
RWY 86.1 ±0.7 82.9 ±2.2 67.5 ±0.6 68.0 ±1.9
AFR 90.4 ±1.1 82.0 ±0.5 68.7 ±0.6 73.4 ±0.6
ERM* + DPE 94.1 ±0.2 84.6 ±0.8 68.9 ±0.6 70.9 ±0.8 83.6 ±0.9 76.8 ±0.1 88.1 ±0.7 50.0 ±0.0 63.0 ±1.7

Worst-Group Accuracy (With Subgroup Annotations)

The top section reproduces SubpopBench baselines using the same ERM backbone. The bottom includes results from original papers and our method (DPE) applied to a stronger ERM* backbone. Bold and underlined values indicate the best result per group, bold values indicate the second-best. DPE denotes our diversified prototypical ensemble. Group Info denotes the use of group labels during training and/or validation: ❌/❌: no group info, : validation group info only, ❌/✔️✔️: group info used for training and tuning, ✔️/✔️: full group labels required.

Algorithm Group Info (Train/Val) Waterbirds CelebA CivilComments MultiNLI MetaShift CheXpert
ERM ❌/❌ 69.1 ±4.7 57.6 ±0.8 63.2 ±1.2 66.4 ±2.3 82.1 ±0.8 41.7 ±3.4
CRT ❌/✔️ 76.3 ±0.8 70.4 ±0.4 68.5 ±0.0 65.4 ±0.1 83.1 ±0.0 74.0 ±0.2
ReWeightCRT ❌/✔️ 76.3 ±0.2 71.1 ±0.5 68.2 ±0.4 65.3 ±0.1 85.1 ±0.4 73.9 ±0.2
DFR ❌/✔️✔️ 89.0 ±0.2 86.3 ±0.3 66.5 ±0.2 63.8 ±0.0 81.5 ±0.0 75.4 ±0.6
ERM + DPE ❌/✔️✔️ 91.0 ±0.4 87.7 ±0.6 71.5 ±0.6 74.8 ±0.3 87.9 ±0.7
ERM* ❌/❌ 77.9 ±3.0 66.5 ±2.6 69.4 ±1.2 66.5 ±0.7 80.0 ±0.0 75.6 ±0.4
Group DRO ✔️/✔️ 91.4 ±1.1 88.9 ±2.3 70.0 ±2.0 77.7 ±1.4
RWG ✔️/✔️ 87.6 ±1.6 84.3 ±1.8 72.0 ±1.9 69.6 ±1.0
JTT ❌/✔️ 86.7 81.1 69.3 72.6
CnC ❌/✔️ 88.5 ±0.3 88.8 ±0.9 68.9 ±2.1
SSA ❌/✔️✔️ 89.0 ±0.6 89.8 ±1.3 69.9 ±2.0 76.6 ±0.7
DFR* ❌/✔️✔️ 92.9 ±0.2 88.3 ±1.1 70.1 ±0.8 74.7 ±0.7
GAP (Last Layer) ❌/✔️✔️ 93.2 ±0.2 90.2 ±0.3 74.3 ±0.2
GAP (All Layer) ❌/✔️✔️ 93.8 ±0.1 90.2 ±0.3 77.8 ±0.6
ERM* + DPE ❌/✔️✔️ 94.1 ±0.4 90.3 ±0.7 70.8 ±0.8 75.3 ±0.5 91.7 ±1.3 76.0 ±0.3

Standard Accuracy (With Attribute Annotations)

(Click to expand)

Attribute Imbalance and Generalization

Attribute imbalance and attribute generalization remain difficult for most methods. As reported in prior benchmarks, even strong methods like GroupDRO and JTT fail to show consistent gains in these scenarios.

DPE addresses these challenges directly. It achieves the highest WGA on both attribute-imbalanced datasets like CheXpert and CivilComments, and attribute-generalization benchmarks such as NICO++ and Living17. By promoting diversity across prototypes, DPE generalizes beyond the dominant attributes present in training.

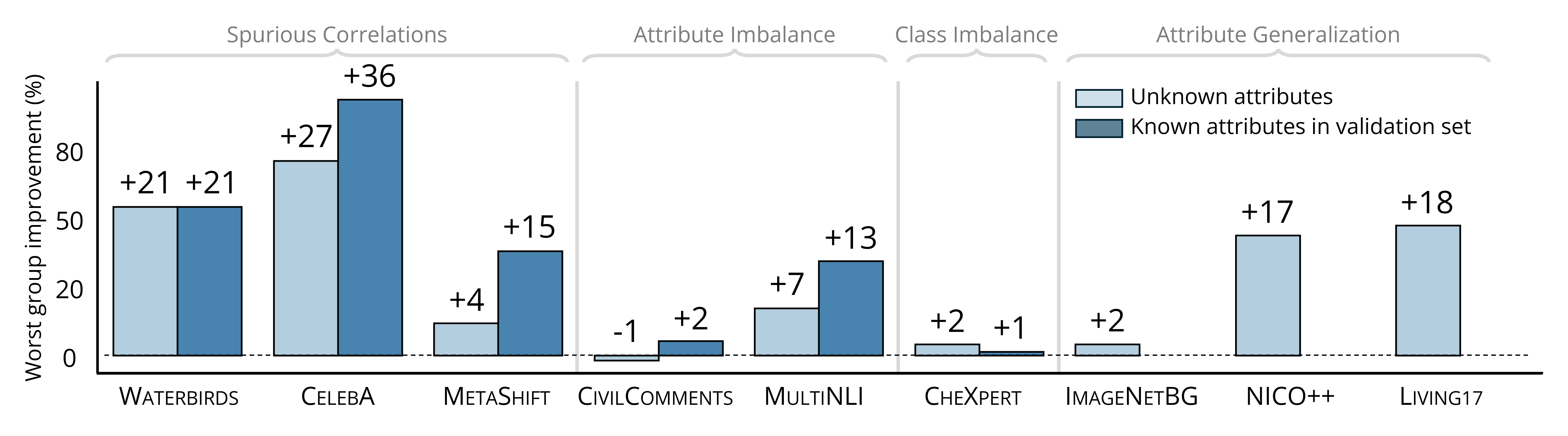

erm*_erm
Worst-group improvement over ERM* when using DPE with and without subgroup annotations.

Disentangling Backbone Effects

To isolate the effect of DPE from that of the feature extractor, we compare DPE on both standard ERM and an enhanced ERM* backbone. DPE consistently improves WGA regardless of the backbone.

On Waterbirds, WGA improves from 69.1% (ERM) and 77.9% (ERM*) → 91.0% and 94.1% with DPE, respectively. On CelebA, WGA increases from 57.6% → 87.7% (ERM+DPE), and from 66.5% → 90.3% (ERM*+DPE). Similarly, on MultiNLI, WGA improves from 66.4% → 74.8% and from 66.5% → 75.3% when DPE is added.

These results confirm that DPE’s improvements come from prototype diversification, not just better representations, making it a modular enhancement applicable across training pipelines.

Ensemble Diversification Strategies

The figure below illustrates how different ensemble diversification strategies impact both worst-group accuracy and balanced accuracy as the number of ensemble members increases. The comparison includes three methods:

  1. Training each prototype on a fixed data subset (no diversification)
  2. Training on random subsets for each ensemble member
  3. Combining random subset selection with inter-prototype similarity loss

The combined strategy consistently yields the best worst-group accuracy across datasets. This highlights the importance of combining both explicit (loss-based) and implicit (sampling-based) diversification to ensure broad coverage of the data distribution and robustness to subpopulation shifts.

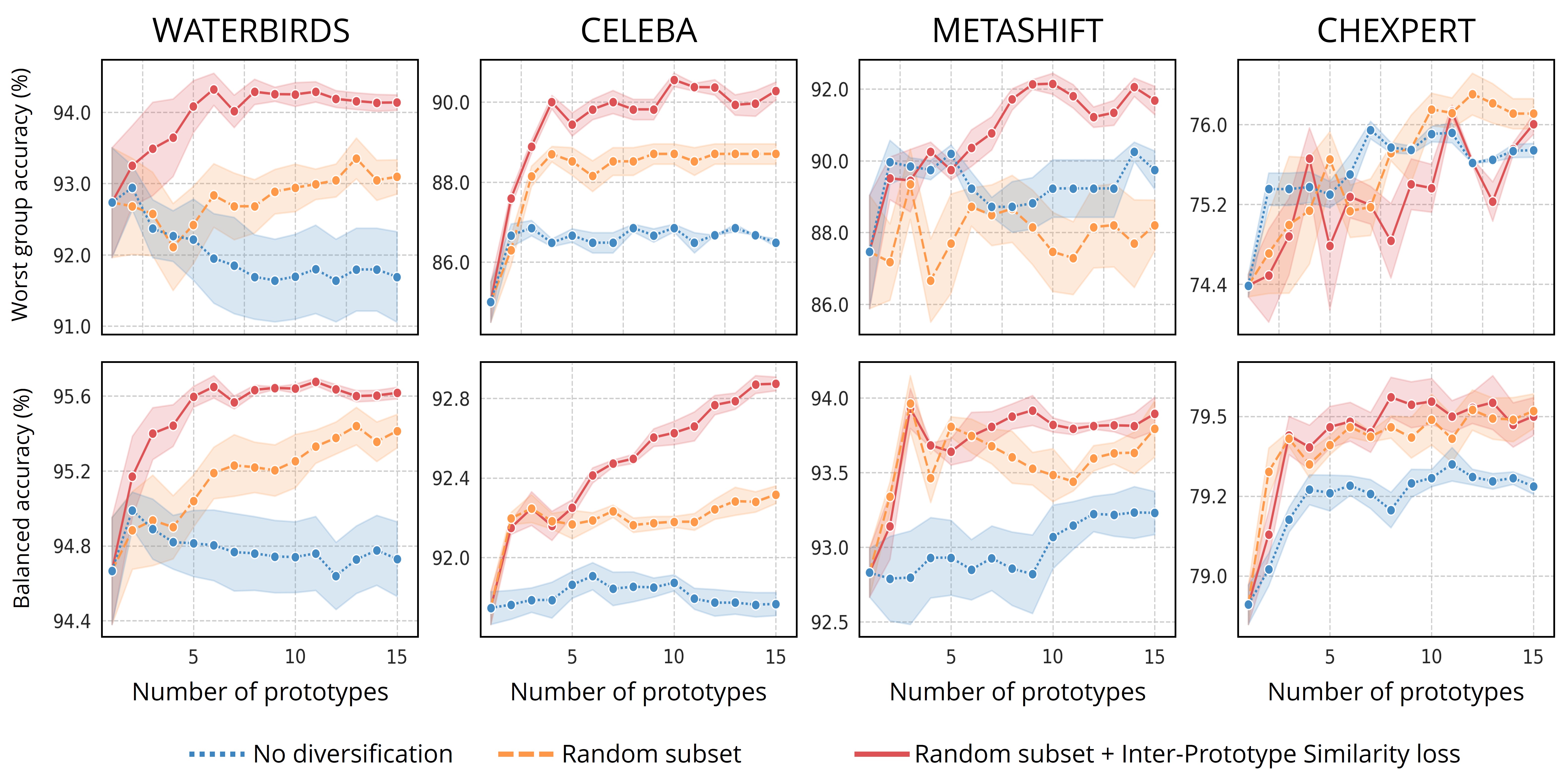

Effect of diversification methods
Effect of different ensemble diversification methods on performance with increasing ensemble size.

Prototype–Subgroup Alignment

To better understand the semantic structure captured by the Diversified Prototypical Ensemble (DPE), we conducted an exploratory analysis on the Waterbirds dataset. For each prototype, we retrieved its top-10 closest validation samples and analyzed the emerging patterns using ChatGPT. As visualized below, the learned prototypes show consistent alignment with ecologically or visually meaningful subpopulations, even though no subgroup labels were used during training.

In the Waterbirds class, the prototypes capture structured concepts such as aquatic divers, large-bodied birds in flight, and compact seabirds in bamboo-heavy or terrestrial environments. In the Landbirds class, the clusters reflect postural cues, background settings, and spurious correlations like songbirds appearing in human-made or beach scenes.

These findings suggest that DPE facilitates implicit subgroup discovery through diversification, which may contribute to its strong performance on worst-group accuracy.

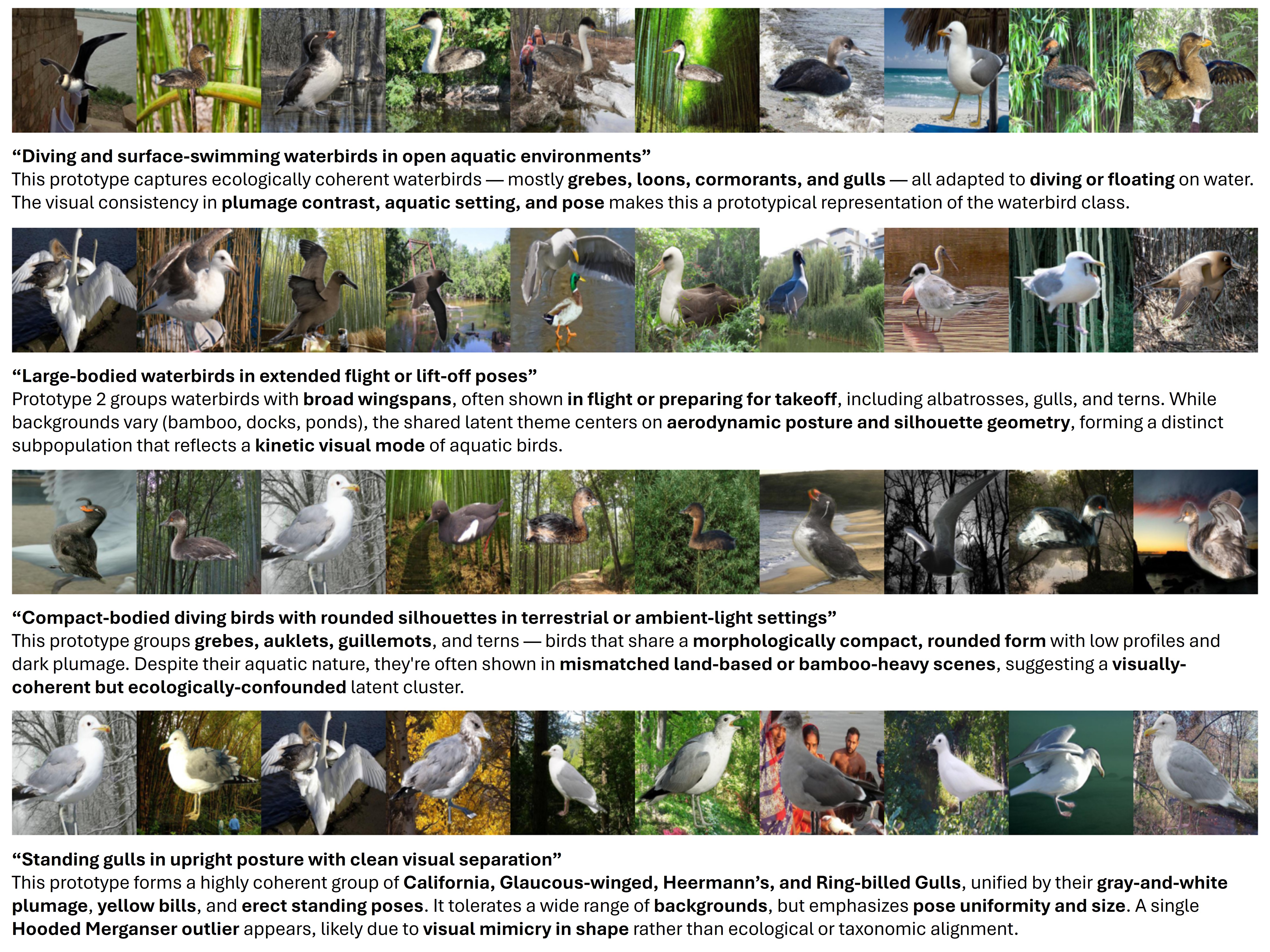

Waterbird Prototypes
Each row shows the top-10 validation samples nearest to one of the learned waterbird prototypes. Patterns include aquatic divers, birds in flight, terrestrial seabirds, and upright gulls, as interpreted by ChatGPT.

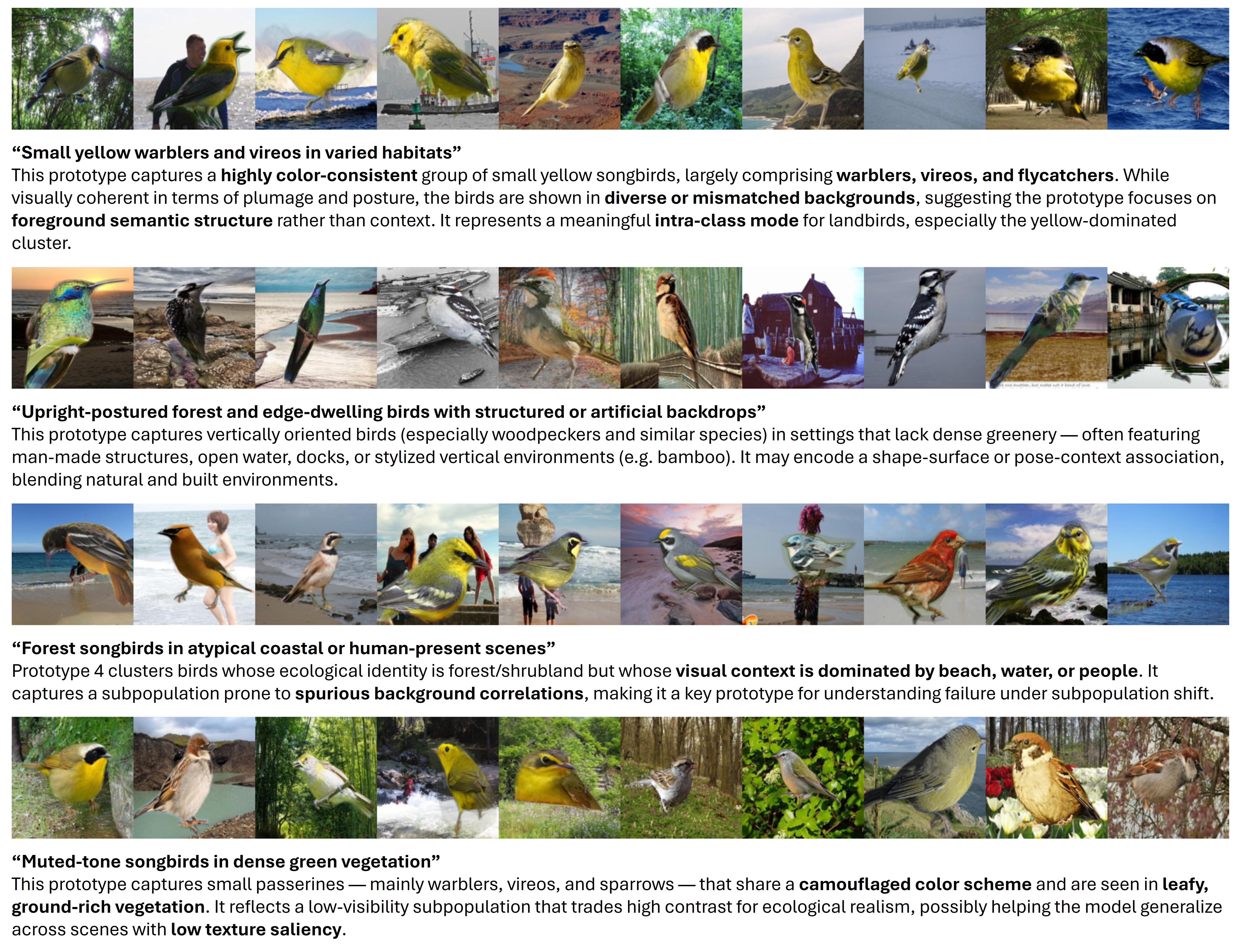

Landbird Prototypes
Each row shows the top-10 validation samples closest to a DPE prototype for the Landbirds class. Learned clusters correspond to postural variation, ecological context, and background-driven biases such as birds in human-made settings.

Limitations

DPE introduces additional complexity due to its ensemble structure and hyperparameters, though this is offset by improved robustness without requiring subgroup labels. The method remains efficient, adding only a few minutes per prototype when trained on pre-extracted features. While empirical results are strong, a formal theoretical explanation for why prototype diversification improves WGA is lacking. Our exploratory analysis suggests semantic alignment with latent subgroups, but a rigorous understanding remains an open research direction.

BibTeX

@inproceedings{to2025dpe,
  title     = {Diverse Prototypical Ensembles Improve Robustness to Subpopulation Shift},
  author    = {To, Minh Nguyen Nhat and Wilson, Paul F R and Nguyen, Viet
               and Harmanani, Mohamed and Cooper, Michael
               and Fooladgar, Fahimeh and Abolmaesumi, Purang and Mousavi, Parvin
               and Krishnan, Rahul},
  booktitle = {International Conference on Machine Learning (ICML)},
  year      = {2025}
}
